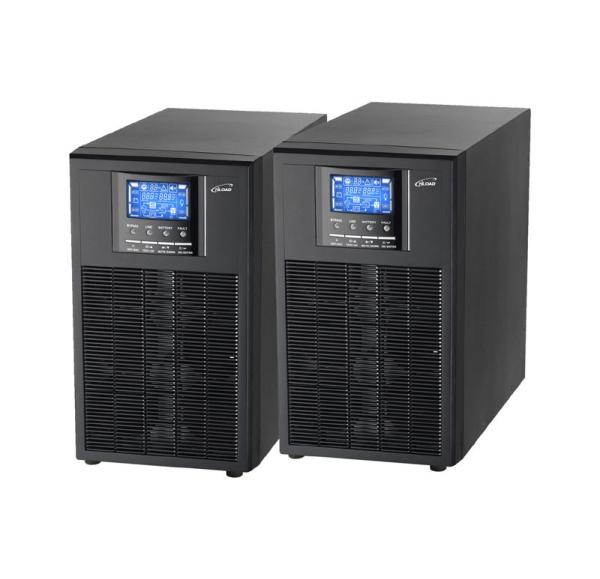

1KVA 2KVA 3KVA Online High Frequency Ups

Brand Name : ZGD

Model Number : C1KS-C3KS

Place of Origin : Guangdong, China

MOQ : 1

Price : $115.00/Sets 1-9 Sets

Payment Terms : Western Union, L/C, T/T

Supply Ability : 10000 Set/Sets per Month

Delivery Time : 10-15 work days

Warranty : 1year

Phase : Single Phase

Protection : Lightning

Weight : 4.6KG-8kg

Type : On-line

Application : COMPUTER

Product name : Uninterrupted Power System

Capacity : 1KVA，2KVA，3KVA

Battery Type : Sealed Lead Acid Battery

Wave Form : Pure Sine Wave

Color : Black

Certificate : CE/ROSH/GS/TUV/MSDS

Display : LCD

Transfer Time : 0ms

Input voltage : 200/208/220/230/240VAC

output voltage : 200/208/220/230/240VAC

Port : Shenzhen or Guangzhou

Contact Now

High Frequency Online UPS System 1KVA 2KVA 3KVA Single Phase Zero Conversion
Microprocessor control ensures reliability
Input power factor correction
Output power factor up to 0.8
Wide power input range (110V~300V)
Efficient frequency conversion mode
Compatible generator
The optional exquisite SNMP card can monitor perfectly alone or together with USB and RS232
Through the display simple operation control, and comprehensive display monitoring UPS status

MODEL		ZGD-1K (L)	ZGD-2K (L)	ZGD-3K (L)
PHASE		Single phase with ground
CAPACITY		1000 VA / 800 W	2000 VA / 1600 W	3000 VA / 2400 W
INPUT
Nominal Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range		55-145 VAC or 110-300 VAC
Frequency Range		40Hz ~ 70 Hz
Power Factor		≥ 0.99 @ Nominal Voltage (100% load)
OUTPUT
Output Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Voltage Regulation		± 1%
Frequency Range (Synchronized Range)		47~ 53 Hz or 57 ~ 63 Hz
Frequency Range (Batt. Mode)		50 Hz or 60Hz ± 0.1 Hz
Current Crest Ratio		3:1
Harmonic Distortion		≤ 3 % THD (Linear Load) ≤ 6 % THD (Non-linear Load)
Transfer Time	AC to DC	Zero
	Inverter to Bypass	4 ms (Typical)
Waveform (Batt. Mode)		Pure Sinewave
EFFICIENCY
To AC Mode		88%	89%	90%
To Battery Mode		83%	87%	88%
BATTERY
Standard model machine	Battery type	12V9AH
	Quantity	2	4	6
	Standard charging time	4 hours charge to 90%
	max charge current	1A
	Charging voltage	27.3VDC±1%	82.1VDC±1%
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers	2 or 3	4 or 6 or 8	6 or 8
	Charging Current (max.)	1.0A/2.0A/4.0A/6.0 A
	Charging Voltage	41.0VDC ± 1%	82.1 VDC ±1%	109.4VDC ±1%
INDICATORS
LCD		Load level, Battery level, AC mode, Battery mode, Bypass mode, and Fault indicators
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continously sounding
PHYSICAL
Standard models	Dimension	282145220	397145220	419190318
	Net weiZGDt(kgs)	9.3	18.6	30
Long-run Model	Dimension	282145220	397145220
	Net WeiZGDt (kgs)	4.6	6.8	7.4
ENVIRONMENT
Humidity		20-90 % RH @ 0- 40°C (non-condensing)
Noise Level		Less than 50dBA @ 1 Meter
MANAGEMENT
Smart RS-232/USB		Supports Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, and MAC
Optional SNMP		Power management from SNMP manager and web browser
*Long-run model is only available in 200/208/220/230/240VAC systems.
**Derate to 80% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 100/200/208VAC
* Product specifications are subject to change without further notice
